aj.product.detail.image_diagram_power_altZ62-D360.93 S3

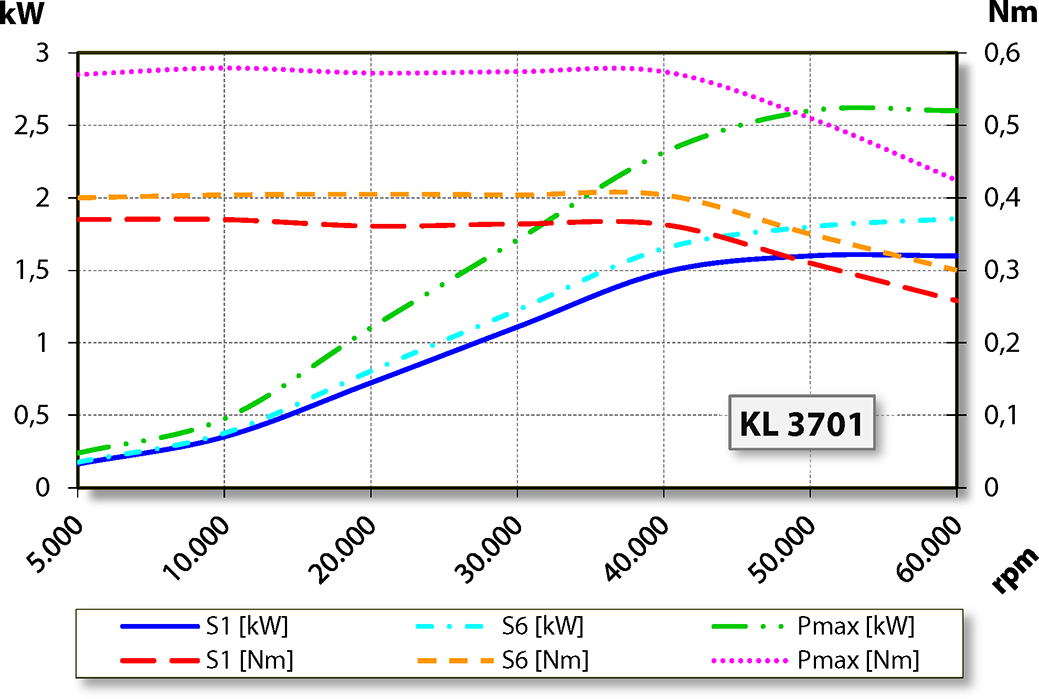

Performance Diagram
Liquid cooled
aj.product.detail.image_dimensions_altZ62-D360.93 S3
Dimensions

Z62-D360.93 S3

Item no. 10303048-01
aj.product.detail.image_altZ62-D360.93 S3
aj.product.detail.image_diagram_power_altZ62-D360.93 S3
Performance Diagram
Liquid cooled
aj.product.detail.image_dimensions_altZ62-D360.93 S3
Dimensions

Technical Specifications

Hybrid ball bearing (pcs) 3
Lifetime lubricated maintenance free
Motor technology 3-phase asynchronous drive
(no brushes or sensors)
Frequency 1000 Hz
Motor poles (pairs) 1
Rated Rotation Speed 60,000 rpm
Rated Power (Pmax/5s) 2.6 kW
Rated Power (S6-60%) 1.9 kW
Rated Power (S1-100%) 1.6 kW
Voltage (Pmax/5s) 185 V
Voltage (S6-60%) 185 V
Voltage (S1-100%) 185 V
Current (Pmax/5s) 15.5 A
Current (S6-60%) 10.9 A
Current (S1-100%) 10.3 A
Motor protection PTC 130°C
Housing Stainless steel
Housing diameter 61,9 mm
Cooling Liquid cooled
Ambient temperature + 10°C … + 45°C
Sealing Air yes
Protection category IP54
Taper Cleaning yes
Tool Change Pneumatic direct change
Collet type 8/5°
Optional accessories
Clamping range 6 mm (1/4")
Direction of motion Clockwise
Coupler plug 8-pin (SpeedTEC)
Weight 4.6 kg
Concentricity <1 µ
