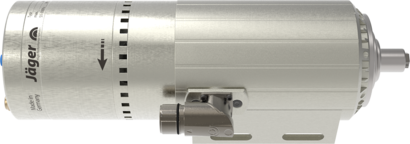

Chopper 1500-F D S5A

Item no. 11303003
aj.product.detail.image_altChopper 1500-F D S5A
aj.product.detail.image_diagram_power_altChopper 1500-F D S5A
Performance Diagram
Fan cooled
aj.product.detail.image_dimensions_altChopper 1500-F D S5A
Dimensions

Technical Specifications

Hybrid ball bearing (pcs) 2
Lifetime lubricated maintenance free
Motor technology 3-phase asynchronous drive
(no brushes or sensors)
Frequency 500 Hz
Motor poles (pairs) 1
Rated Rotation Speed 30,000 rpm
Rated Power (Pmax/5s) 3.5 kW
Rated Power (S6-60%) 1.9 kW
Rated Power (S1-100%) 1.5 kW
Voltage (Pmax/5s) 200 V
Voltage (S6-60%) 200 V
Voltage (S1-100%) 200 V
Current (Pmax/5s) 14 A
Current (S6-60%) 7 A
Current (S1-100%) 7 A
Motor protection PTC 130°C
Housing Aluminium
Housing diameter 100 mm
Cooling Fan-cooled
(3 electric fans)
Heat dissipation Via the housing
Housing temperature <+ 55° C
Ambient temperature + 10°C … + 45°C
Sealing Air yes
Protection category IP54
Tool Change Pneumatic direct change
Collet type 10/5°
Clamping range 8 mm
Direction of motion Clockwise
Coupler plug 9-pin (SpeedTEC)
Weight 7 kg
Concentricity <2 µ

Optional accessories

Collet 3 mm 10/5°

40510230

Ø3 mm / Ø7,55

25290050

WS 18/7,55

25250050

WS 20/7,55

25250250

Collet 3 mm 10/5°

40510503

Ø3 mm / Ø7,55

25290050

WS 18/7,55

25250050

WS 20/7,55

25250250

Collet 3 mm 10/5°

40510530

Ø3 mm / Ø7,55

25290050

WS 18/7,55

25250050

WS 20/7,55

25250250

Collet 1/8” 10/5°

26323200

Ø1/8" / Ø7,55

25290150

WS 18/7,55

25250050

WS 20/7,55

25250250

Collet 1/8” 10/5°

40510231

Ø1/8" / Ø7,55

25290150

WS 18/7,55

25250050

WS 20/7,55

25250250

Collet 1/8” 10/5°

40510532

Ø1/8" / Ø7,55

25290150

WS 18/7,55

25250050

WS 20/7,55

25250250

Collet 4 mm 10/5°

26314000

Ø4mm / Ø10,5 Ms

25290250

WS 18/10,5

25250150

WS 20/10,5

25250350

Collet 4 mm 10/5°

40510240

Ø4mm / Ø10,5 Ms

25290250

WS 18/10,5

25250150

WS 20/10,5

25250350

Collet 4 mm 10/5°

40510540

Ø4mm / Ø10,5 Ms

25290250

WS 18/10,5

25250150

WS 20/10,5

25250350

Collet 6 mm 10/5°

40510260

Ø6mm / Ø10,5

25290350

WS 18/10,5

25250150

WS 20/10,5

25250350

Collet 1/4” 10/5°

40510563

WS 18/10,5

25250150

WS 20/10,5

25250350

Collet 8 mm 10/5°

40510280

aj.product.detail.image_diagram_power_altChopper 1500-F D S5A
aj.product.detail.image_dimensions_altChopper 1500-F D S5A
