| Hybrid ball bearing (pcs) | 2 |
| Lifetime lubricated | maintenance free |
| Motor technology |
3-phase asynchronous drive (no brushes or sensors) |
| Frequency | 667 Hz |
| Motor poles (pairs) | 1 |
| Rated Rotation Speed | 40,000 rpm |
| Rated Power (Pmax/5s) | 3.5 kW |
| Rated Power (S6-60%) | 2.6 kW |
| Rated Power (S1-100%) | 2.3 kW |
| Voltage (Pmax/5s) | 200 V |
| Voltage (S6-60%) | 200 V |
| Voltage (S1-100%) | 200 V |
| Current (Pmax/5s) | 14 A |
| Current (S6-60%) | 10 A |
| Current (S1-100%) | 9.5 A |
| Speed Sensor |
Differential magneto resistor (TTL) Number of signals = 6 |
| Motor protection | PTC 130°C |
| Housing | Aluminium |

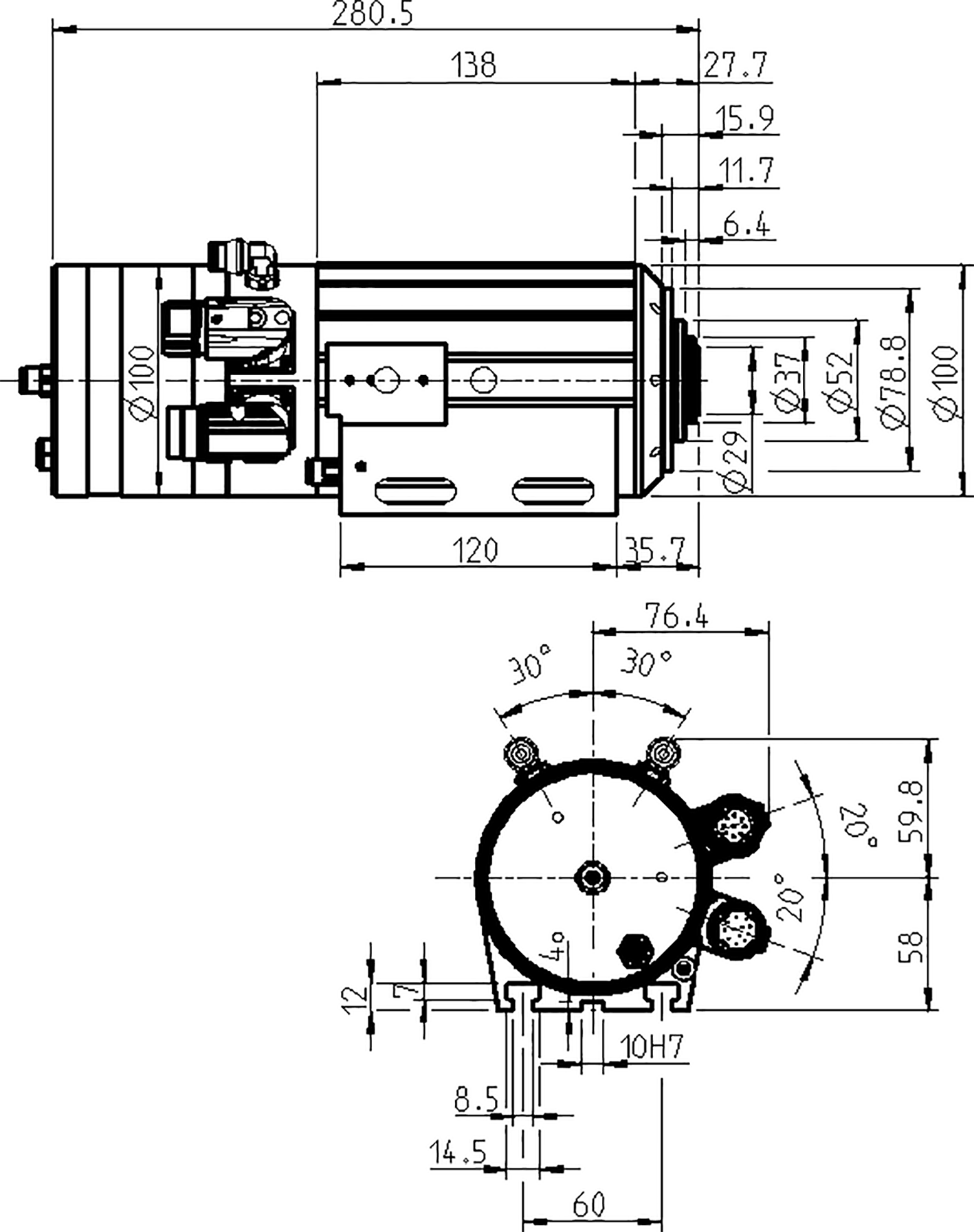

| Housing diameter | 100 mm |
| Cooling | Liquid cooled |
| Ambient temperature | + 10°C … + 45°C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | yes |
| Tool Change | Pneumatic taper change |
| Tool Holder | WK 19 |
| Clamping status monitoring | inductive |
| Collet type |
ER 16 / D 10 Optional accessories |
| Clamping range | 10 mm ( 25/64" ) |
| Direction of motion | Clockwise and anticlockwise |
| Coupler plug |
9-pin (SpeedTEC) (motor phases) 12-pin (sensors) |
| Weight | 7 kg |
| Concentricity | <2 µ<2 µ |
| Axial run-out | <2 µ |
