| Hybrid ball bearing (pcs) | 4 |
| Lifetime lubricated | maintenance free |
| Motor technology |
3-phase asynchronous drive (no brushes or sensors) |
| Frequency | 1200 Hz |
| Motor poles (pairs) | 2 |
| Rated Rotation Speed | 36,000 rpm |
| Rated Power (Pmax/5s) | 16.1 kW |
| Rated Power (S6-60%) | 11.5 kW |
| Rated Power (S1-100%) | 10 kW |
| Voltage (Pmax/5s) | 380 V |
| Voltage (S6-60%) | 380 V |
| Voltage (S1-100%) | 380 V |
| Current (Pmax/5s) | 38.4 A |
| Current (S6-60%) | 28.5 A |
| Current (S1-100%) | 25.7 A |
| Speed Sensor | Vector control |
| Housing | Stainless steel |

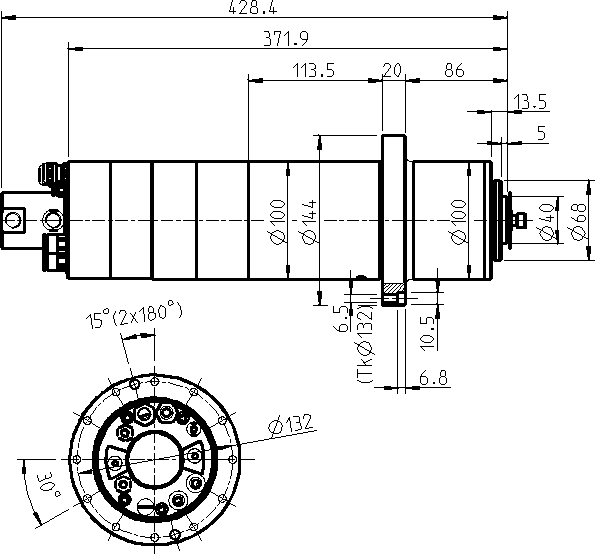

| Housing diameter | 100 mm |
| Flange Diameter | 144 mm |
| Pitch circle |
dia.132 mm ( 12 x Ø 6,5 ) for screws: M6 |
| Cooling | Liquid cooled |
| Ambient temperature | + 10°C … + 45°C |
| Sealing Air | yes |
| Protection category | IP54 |
| Taper Cleaning | yes |
| Internal coolant supply | ja |
| Tool Change | Hydraulic taper change |
| Tool Holder | HSK-E 40 |
| Clamping status monitoring | inductive |
| Clamping range | 16 mm |
| Direction of motion | Clockwise and anticlockwise |
| Coupler plug |
5-pin (ECTA 133) Cable length0,5 m (motor phases) 12-pin (ECTA 133) + 17-pin Cable length0,5 m (sensors) |
| Weight | 16 kg |
| Concentricity | <1 µ |
| Axial run-out | <1 µ |
